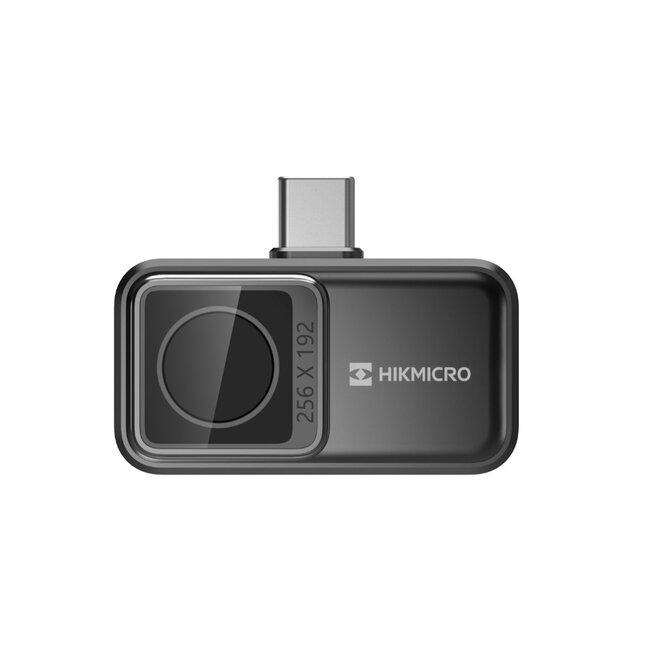

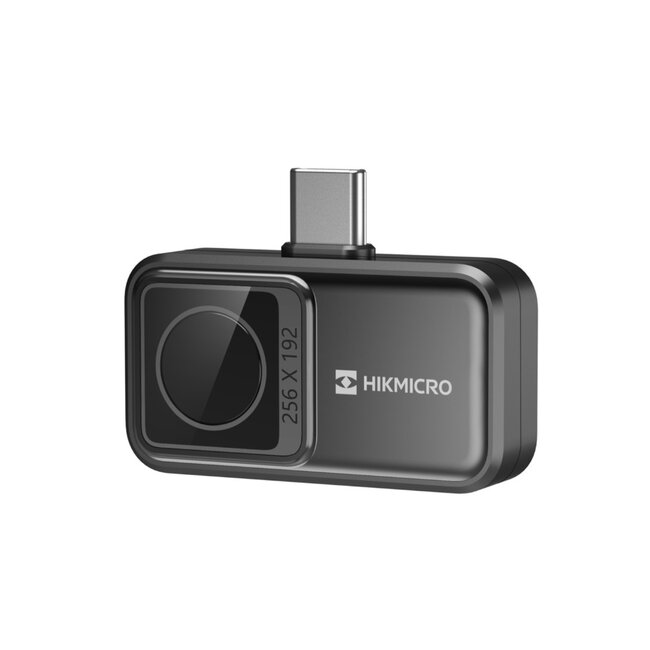

Smartphone thermal imaging camera from HIKVISION / HIKMICRO with a thermal resolution of 256x192 pixels. Lire plus.

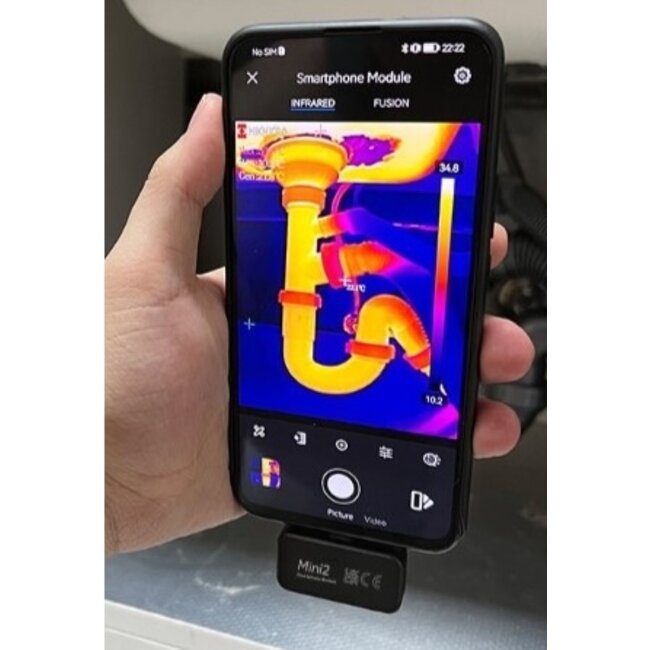

The smartphone camera helps you measure surface temperature, inspect electrical equipment, troubleshoot HVAC problems or search for objects in the dark. Equipped with functional thermal app for smartphone, the smartphone camera allows you to see another world that cannot be seen with the naked eye.
Highlights:
- Super Clear Thermal Image
- 25 Hz Smooth Video
- Accurate Temperature Measurements
- Mini Size
- Plug and Play
- Battery-free
- Durable and Rugged
- Wide Angle
- Essential Accessories Included
- APP for smartphone or tablet
Key Features:
- Thermal resolution: 256 × 192 (49.152 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Accuracy: ±2 °C (-20 °C to 100 °C)
- USB Type-C Interface (Android)
- 20 g Weight
Specifications:
- FOV (Field of View): 50° × 37.2° (H × V)
- Minimum Focus Distance: 20 cm
- Focus: Fixed
- Image Frequency: 25Hz
- Power: Powered by Smartphone (no own battery)
- Phone: USB-C Android
- Protection Level : IP40
- Dimensions: 42 × 22.5 × 11.2 mm
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined

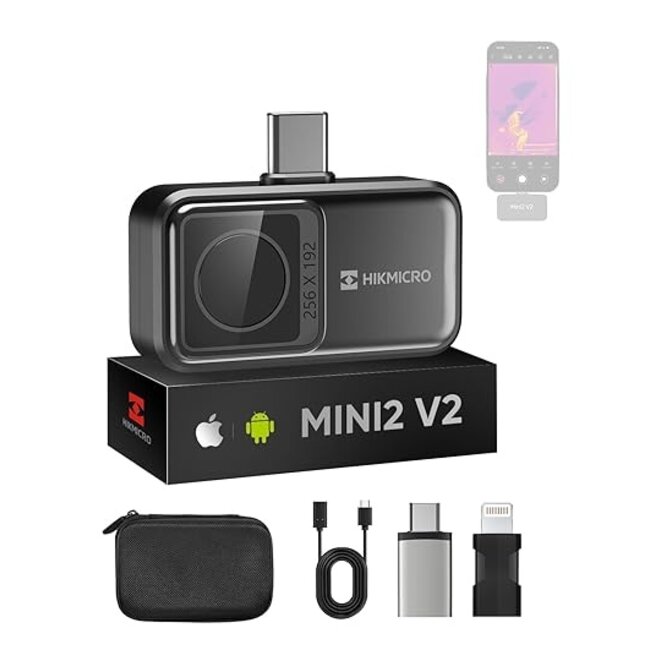

Packinglist:
- MINI2 V2 Smartphone Thermalcamera
- USB adapter
- Extension cord
- Quick start guide
- Protective case
Note:
You need to download the "HikMicro viewer" app from the Google Play Store.
Open the app, connect the camera and follow the steps.
