HIKMICRO MINI-X | HM-TJ52-3AQF/W-MiniX | Smartphone Thermal Camera

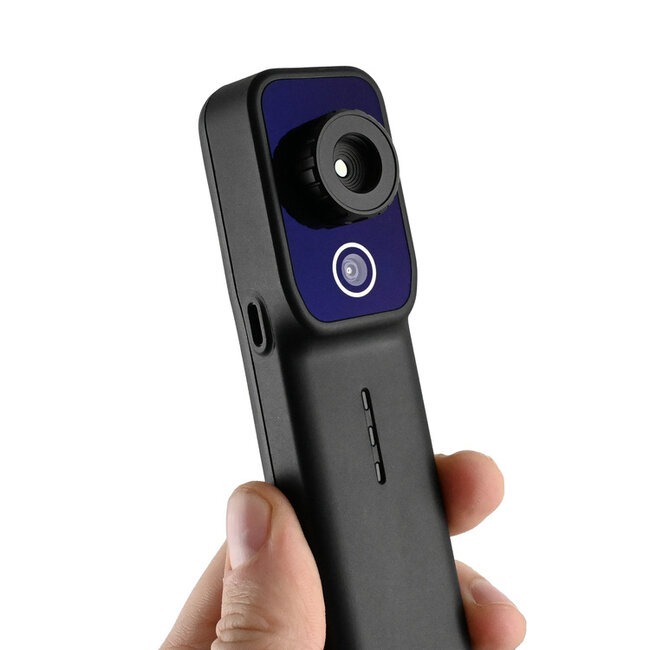

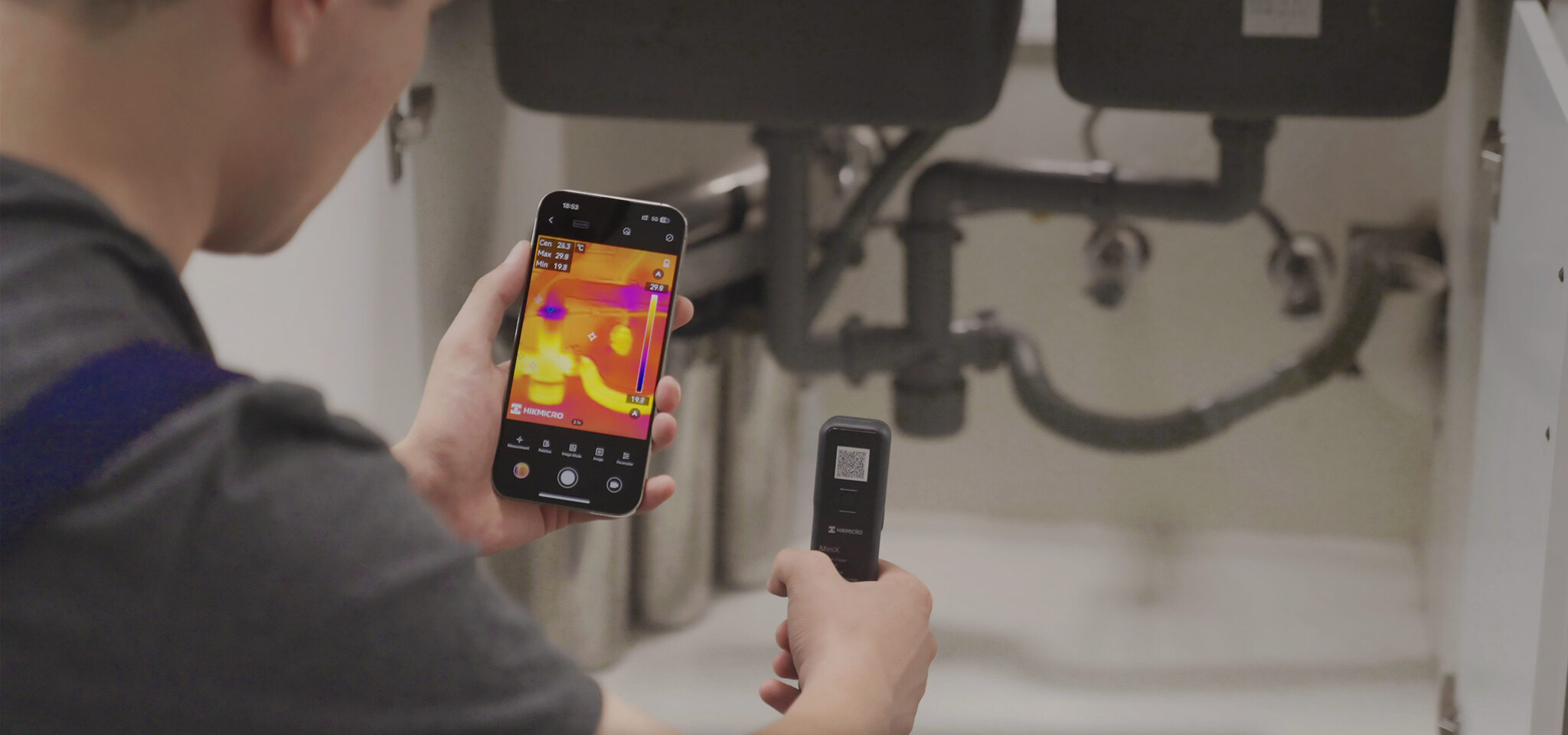

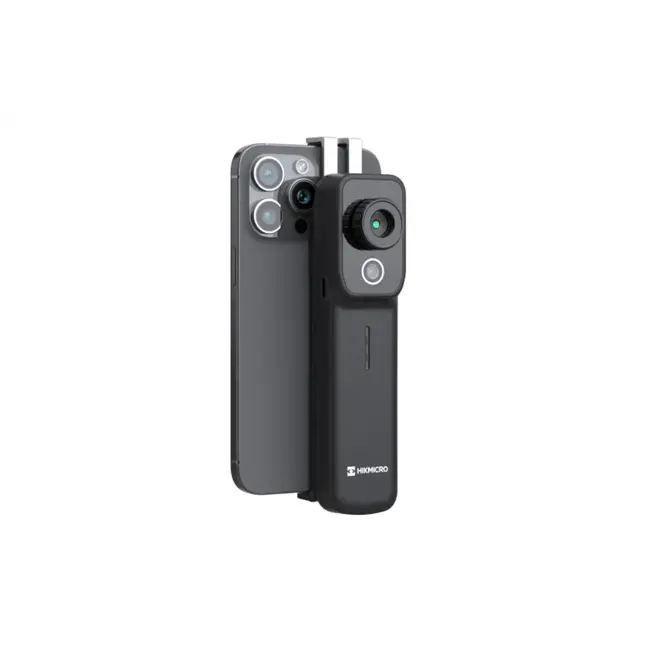

The HIKMICRO innovation MiniX is a versatile thermal imaging tool that wirelessly connects to your smart device. The MiniX provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring. It features a dual-lens, a high-resolution VOx detector, and a 0.3 MP optical camera for added detail. With SuperIR™ and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements. The wide temperature range of -20°C to 550°C makes it ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The MiniX has a 25 Hz frame rate for fast inspections and a Wi-Fi function for real-time image sharing. It's a powerful thermography tool that fits in your pocket, ready whenever you need it.

Highlights:
- Super Clear Thermal Image
- 25 Hz Smooth Video
- Accurate Temperature Measurements
- Mini Size
- Plug and Play
- Battery-free
- Durable and Rugged
- Wide Angle
- Essential Accessories Included
- APP for smartphone or tablet

Key Features:
- Thermal resolution: 256 x 192 (49.152 pixels)
- NETD: < 40 mK (@ 25 °C, F#=1.0)
- Accuracy: ±2 °C (-20 °C to 100 °C)
- USB Type-C Interface (Android)
- 158 g Weight

Specifications:
- FOV (Field of View): 37.2° × 50.0° (H × V)
- Minimum Focus Distance: 50 cm
- Focus: Manual
- Image Frequency: 25Hz
- Power: 4 hours battery
- Phone: USB-C Android
- Protection Level : IP54
- Dimensions: 155.45 × 38.89 × 32.15 mm
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

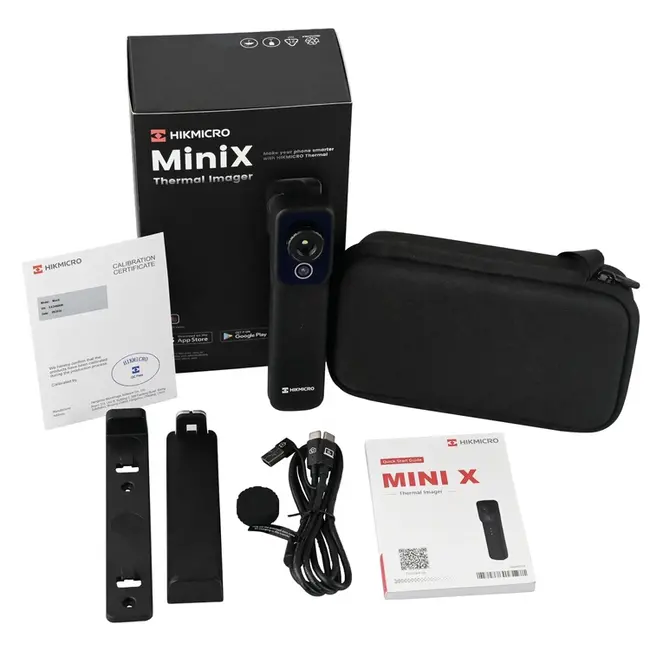

Packinglist:
- MINI-X Smartphone Thermalcamera
- USB cable
- Phone mount holder
- Quick start guide
- Protective case

Note:
You need to download the "HikMicro viewer" app from the Google Play Store.
Open the app, connect the camera and follow the steps.
