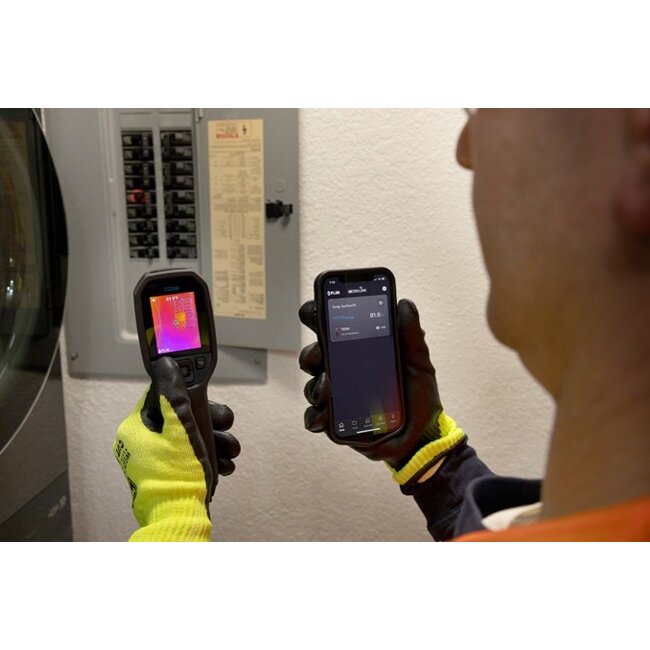

The FLIR TG298 is a 30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser Read more.
The FLIR TG298 takes you beyond the limitations of singlespot IR thermometers, allowing you to see the hot and cold spots that can indicate serious issues. Examine everything from electrical connections to mechanical breakdowns quickly and accurately. This handheld thermal camera reduces diagnostic time while simplifying reporting and long-term monitoring of equipment and systems throughout a facility. FLIR MSX® (Multi-Spectral Dynamic Imaging) improves image clarity by embossing visual scene details on thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved. With a simple user interface, Bluetooth® connectivity, storage for up to 50,000 images, and rechargeable Li-ion battery, FLIR TG298 is ready to go out of the box.
Key Features:
• Accurately measure temperatures up to 1080°C (752°F) with the TG298
• Quickly locate problems with FLIR-patented MSX® image enhancement for added detail and super resolution for upscaling thermal images to 320×240
• Capture readings, images, and videos for analysis and sharing with the FLIR METERLiNK® app
• Rugged IP54 rating and 2 m (6 ft) drop tested with bright LED flashlight
Main Applications:
• Inspecting electrical, mechanical, and automotive equipment
• Monitoring equipment for signs of degradation before it fails
• Ensuring energy efficiency in building inspections
• Conducting process manufacturing and quality assurance checks on high-temperature applications at safe distances
Specifications:
• IR Resolution: 160x120
• Super Resolution: 320x240
• MSX: Yes
• Thermal Sensitivity/NETD: <50mK or 0.05°C
• FOV: 44°x57°
• Distance: Spot Size Ratio: 30:1
• Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
• Spectral Range: 7.5-14 µm
• Object Temperature Range: -25°C tot 1080°C
• Center spot: Yes
• Minimum Focus Distance: 0.5m
• Minimum Measurement Distance: 0.26m
• Video Recording: Yes
• Battery Operating Time: 5 hours (4,5 hours with laser on)
• Battery Charging System: USB Type-C
• Storage Media:8 GB
• Bluetooth: Yes
• IP Rating: IP54
