MIO Series intelligent I / O solutions are designed to convert FLIR thermal imaging temperature sensors into complete remote monitoring systems Read more.

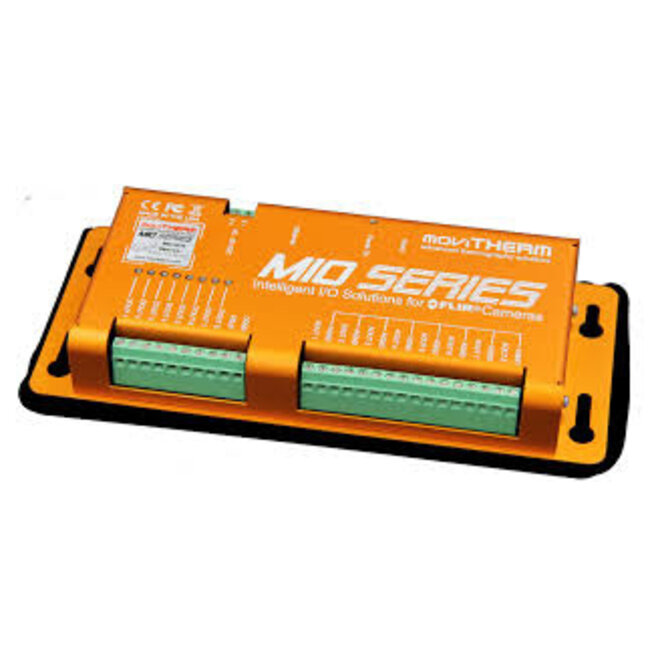

The MIO Series Intelligent I/O solutions are designed to turn FLIR thermal imaging temperature sensors into complete remote monitoring systems. Easy to set up and easy to configure, the MIO Series is your remote monitoring solution for process control, condition monitoring, and fire prevention.
The MIO Series is an intelligent module that can be easily configured via the built-in web server. Once connected with up to seven FLIR thermal imaging temperature sensors, the MIO module can target designated regions or areas of interest (ROI) and start monitoring. The module can be programmed
through the web server to alarm when a temperature threshold is breached, updating in real time. The MIO can also output an analog 4 to 20 mA current loop signal per each region of interest, providing the user with process control options.
Key features:
- Compatible with FLIR® AX8 Cameras
- Monitor 7 cameras
- Configure Alarms via built-in Web Server
- Digital Outputs (24 VDC)
- 4-20 mA Outputs
- Ethernet Connectivity
Typical applications:
- Critical Vessel Monitoring
- Condition Monitoring
- Process Monitoring
- Early Fire Detection
Technical Specifications:
| Maximum Cameras Supported | 7 |
| Ethernet Connection | 100Base-T |
| Communication Protocol | Modbus TCP/IP |
| 4-20 mA Transmitter Channels | 8 CH, Loop Powered, Isolated |
| Digital Output Channels | 8 |
| Digital Output Current | 0.5A per Channel, 1.5A All Channels |
| Digital Output Voltage | 10-30 VDC |
| Power Supply Voltage | 24 VDC |
| Maximum Power Consumption | 7 W |
| List of Contents | MIO-AX8-1 Unit Din Rail Adapter Clip Manual on USB drive |
Advanced multi-camera thermal monitoring with alarms, automated notification, datalogging, PLC connectivity and real-time video archiving using the MIOAX8-7
