The Hikmicro AD21 acoustic leak detector uses advanced sound processing techniques to detect sound waves from water leaks. These sound waves are converted into sounds and numbers that are heard by the human ear. Read more.
The HIKMICRO AD21 acoustic leak detector is an advanced, high-performance instrument designed for technicians and plumbers to detect leaks in pipes, water systems, and both residential and commercial buildings. The device uses advanced sound processing techniques to capture sound waves from water leaks, which are then converted into audible sounds and measurable values.
With four selectable digital bandpass filters and a gain of up to 80 dB, the AD21 provides precise filtering and amplification of sound frequencies, making it easy to locate leak points. The system uses the propagation characteristics of sound waves and shock waves: when water flows through a leak point, specific sound waves and shock waves are produced, which are received and analyzed by the detector to determine the location of the leak.

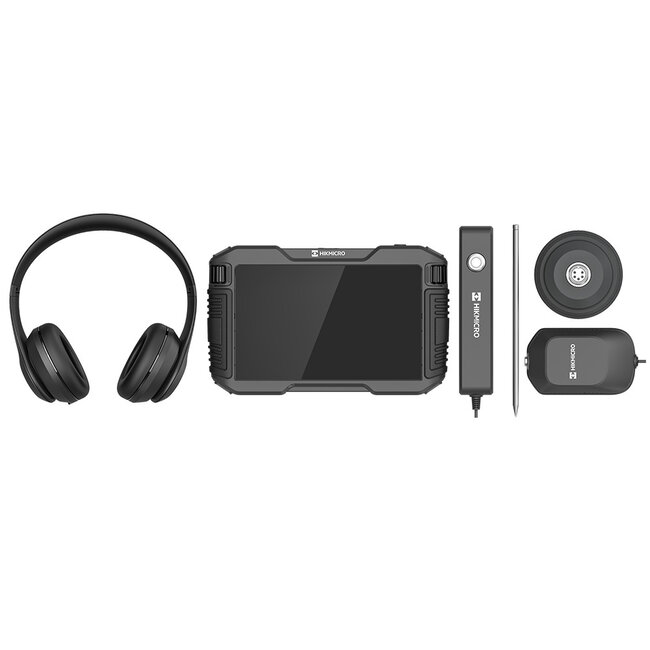

The AD21 is versatile with both a handheld sensor and a pick-up sensor, which makes it possible to detect even difficult to detect leaks. This helps to reduce raw material waste and loss, and ensures efficient detection of leaks in pipes and systems.
Frequency range: 150~7500Hz
Signal to Noise Ratio: 60dB
Sensitivity: -29dB, 70mv/g

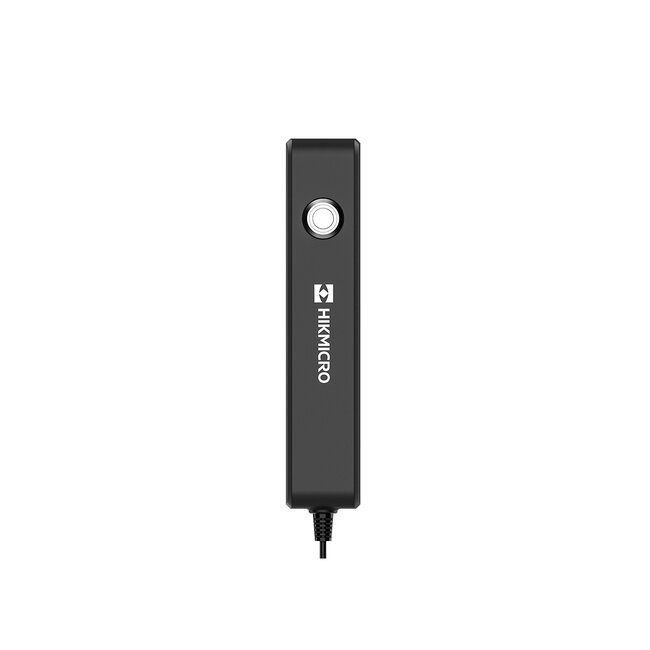

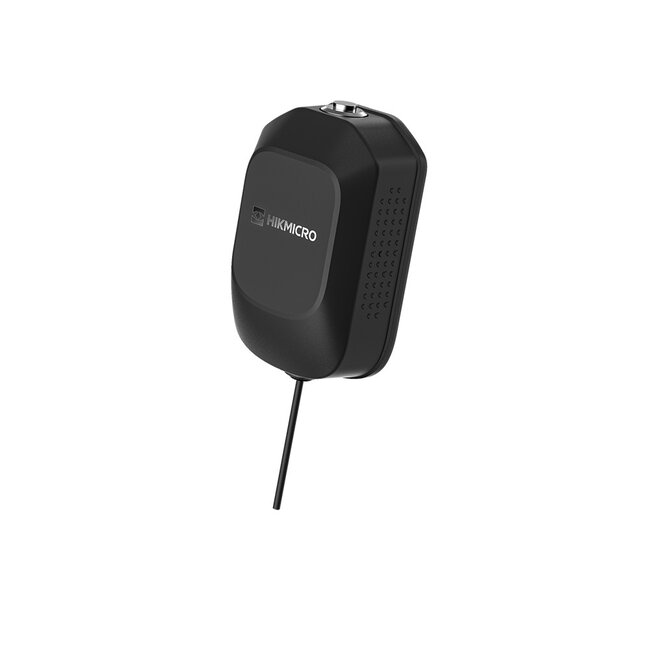

Sensor: Hand sensor, Pick-up sensor
Bandpass filters Within low frequency: 150Hz to 3000Hz
Center frequency inside: 3000Hz to 6000Hz
Within high frequency: 4500Hz to 7500Hz
Indoor all-pass: 150Hz to 7500Hz
Screen: 1024×600 Resolution，7″LCD Touch Screen
Screen Brightness: Manual/Auto
Storage media: Built-in EMMC (4GB)
Audio storage capacity: Approx. 20 hours
Temperature range: -10 °C to 50 °C (14 °F to 122 °F)
Battery type: Rechargeable Li-ion battery
Battery operating time: ≥11h
Battery charging time: 3h to 90%, 6h to full charge
Protection Level Main Unit: IP40
Manual sensor: IP54
Pick-up sensor: IP66
