With FLIR Vue™ you get all the thermal imager you need for sUAS operations without having to pay for functionality you'll never use. Read more.
Pre-configured to give you the best imagery possible from an sUAS, FLIR Vue is light enough that it won't throw off your center of gravity or impact your flight times. With simple power-in and video-out connections, it's easy to integrate and get flying on just about any platform.
Best of all, with MSRPs of only €1,499 for 336 resolution cameras and €2,999 for 640 cameras, FLIR Vue is affordable for today's commercial sUAS operations.
Thanks to FLIR Vue, thermal's done right.
Overview |
||
|---|---|---|
| Thermal Imager | Uncooled VOx Microbolometer | |
| Resolution | 640x512 | 336x256 |

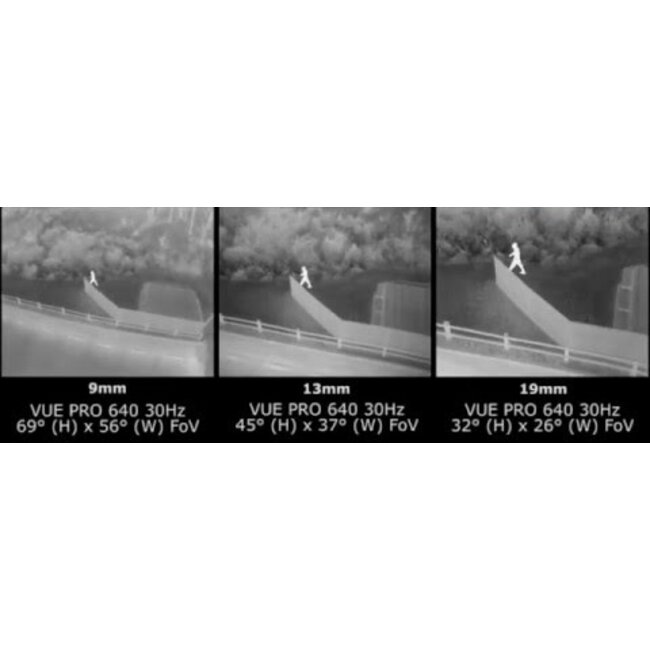

| Lens Options | 9 mm; 69° x 56° 13 mm; 45° x 37° 19 mm; 32° x 26° |
6.8 mm; 45° × 35° 9 mm; 35° x 27° 13 mm; 25° x 19° |
| Spectral Band | 7.5 - 13.5 μm | |
| Full Frame Rates | 30 Hz (NTSC); 25 Hz (PAL) | |
| Exportable Frame Rates | 7.5 Hz (NTSC); 8.3 Hz (PAL) | |
| Physical Attributes | ||

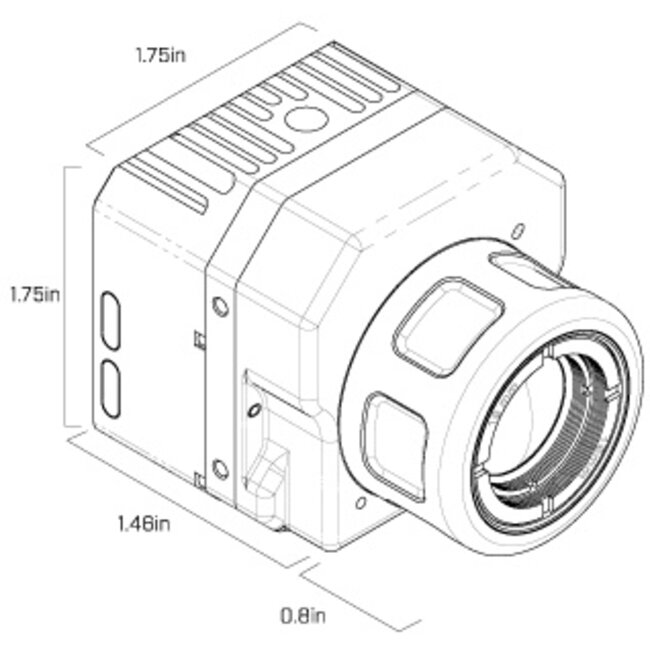

| Size | 2.26" x 1.75" (including lens) | |
| Weight | 3.25 - 4 oz (Configuration Dependant) | |
| Precision Mounting Holes | Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top |
|
| Image Processing & Display Controls | ||
| Image Optimization for sUAS | Yes | |
| Digital Detail Enhancement | Yes - Adjustable in GUI | |
| Invertable Image? | Yes - Adjustable in GUI | |
| Polarity Control (black hot/whitehot) & Color Palettes | Yes - Adjustable in GUI | |
| Interfacing | ||
| Input Power (max 2.5 amp during shutter) | 4.0 - 6.0 VDC | |
| Power Dissipation (steady state) | <1.2 W | ˜1.0 W |
| Environmental | ||
| Operating Temperature Range | -20°C to +50°C | |
| Non-Operating Temperature Range | -55°C to +95°C | |
| Operational Altitude | +40,000 feet |
|
