Zenmuse XT 336 9Hz Radiometric. Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/30... Read more.

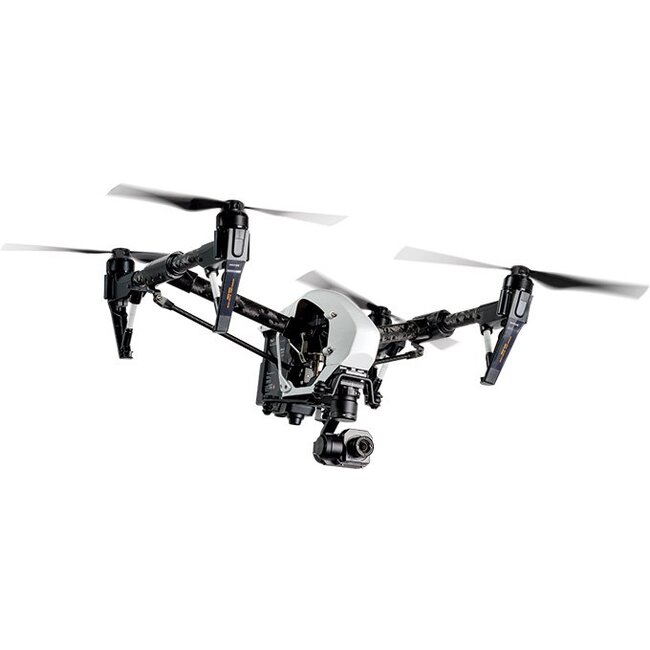

Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. By combining DJI’s unrivaled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.

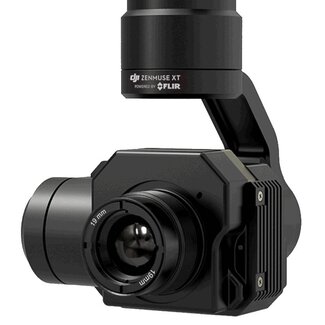

The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) infrared scanning at 640/30 fps or 336/30 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilized and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.
|
Thermal Imager |
Uncooled VOx Microbolometer |
|
|
FPA/Digital Video Display Formats |
640 × 512 |
336 × 256 |
|
Pixel Pitch |
17 μm |
|
|
Full Frame Rates |
30 Hz (NTSC) 25 Hz (PAL) |
|
|
Exportable Frame Rates |
<9Hz * |
|
|
Sensitivity (NETD) |
<50 mK at f/1.0 |
|
|
Photo Formats |
JPEG (8 bit) / TIFF (14 bit) |
|
|
Video Format |
MP4 |
|
|
Digital Zoom |
2x, 4x, 8x |
2x, 4x |
|
Lens Options |
7.5mm 90° x 69° |
6.8mm 49.1° x 37.4° |
*Please refer to Export page for details about the Zenmuse XT in your market.
