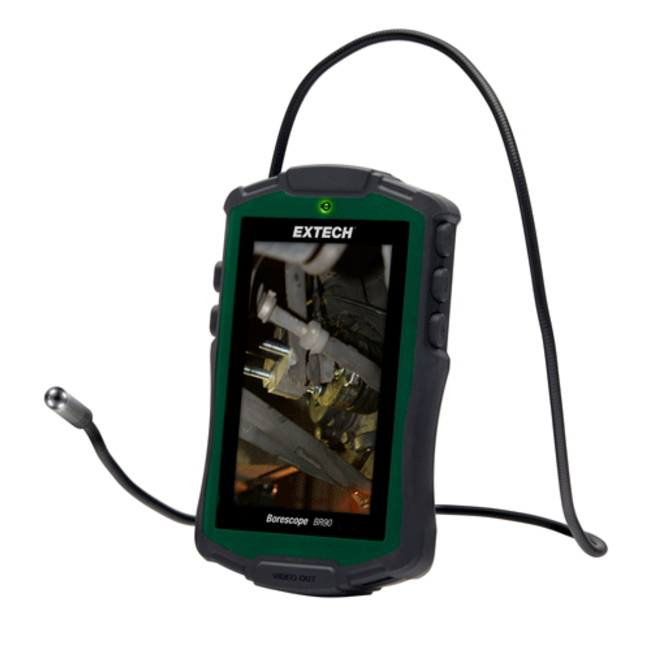

Extech BR90 Borescope Inspection Camera
The Extech BR90 is a palm-sized, waterproof (IP67) 8mm camera probe with a 2.5ft (77cm) flexible goose-neck cable to retain its configured shape. The borescope features a unique compartment to coil the camera probe for easy storage. Its 640 x 480 pixel resolution, 2x digital zoom, and built-in bright LED lamps help project viewed objects clearly on the large 4.3" (109mm) color LCD display. The monitor has adjustable brightness, 180° image rotation, mirror-flip feature, and video output. It’s a fully loaded inspection camera at an affordable price!
Features:
- Waterproof (IP67) 8 mm diameter camera probe with 2.5 ft (77 cm) flexible goose-neck cable retains configured shape
- 640 x 480 pixel resolution camera with four built-in bright LED lamps and dimmer function
- Glare-free close-up field of view
- Large 4.3" (109 mm) color TFT LCD monitor for viewing detailed images
- 180° image rotation and mirror flip feature
- Adjustable display brightness and 2x digital zoom
- Video output for real-time viewing on a monitor (video cable not included)
- Low battery indicator
- Complete with built-in camera probe, extension tools (mirror, hook, magnet, and fixture), 4 AA batteries, and soft carrying case
Specifications:
| Camera resolution | 640 x 480 pixels |
| Camera view angle | 50° |
| Camera focus distance from object | ~0.2 to 0.3" (~5 to 8 mm) |
| Camera minimum bend radius | 1" (25 mm) |
| Camera dimensions | Shaft: 0.32" (8 mm) diameter |
| Cable dimensions | 0.2" (4.4 mm) diameter/ 2.5 ft (77 cm) long |
| LCD screen type | 4.3" (109 mm) color TFT display |
| Monitor resolution | 640 x 480 pixels |
| Image zoom ratio | 1.5x and 2x |
| Video format | NTSC |
| Monitor dimensions | 7.1 x 3.5 x 1.4" (180 x 89 x 36 mm) |
| Weight | 11.5 oz (325 g) |
